| Min. Order: | 50 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 6000 units/month |
| Packing: | Standard export... | Delivery Date: | 1-7 days after... |
|---|---|---|---|
| Product Material: | Others | Special Function: | Detector |
| Position: | Others | Open Style: | Automatic |
| Brand Name: | VEZE | Category: | Automatic door beam sensor |
1) Overall features of automatic door beam sensor:
a) Easy installation and debugging
b) Can work harmoniously with other sensors to ensure safety maximally
c) Infrared detection, strong anti-interference ability
d) Low power consumption, energy saving
e) Exquisite design, compact size,suitable for small space
f) Widely applied to automatic doors
g) Long transmitting distance, max. 10m
h) Single beam / double beam (optional)
2) Technical specifications of automatic door beam sensor:
Voltage | DC/AC 12V-36V |
Static current | 25mA |
Working current | 40mA |
Alarm current | 100mA |
Transmitting frequency | 38MHz |
Max. transmitting distance: | 10m |
Detection distance | 6m |
Hold on time | 1-9s(adjustable) |
Detection mode | Single infrared beam |
Ambient temperature | -40~+45°C |
| Relative humidity | 10~90% RH |
| External wires | Transmitter wire (blue), 6m Receiver wire (black), 6m |
| Dimensions | 123mm(L)*50mm(W)*32mm(H) |

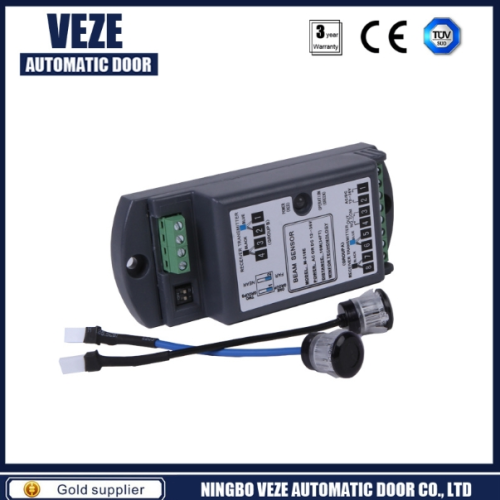

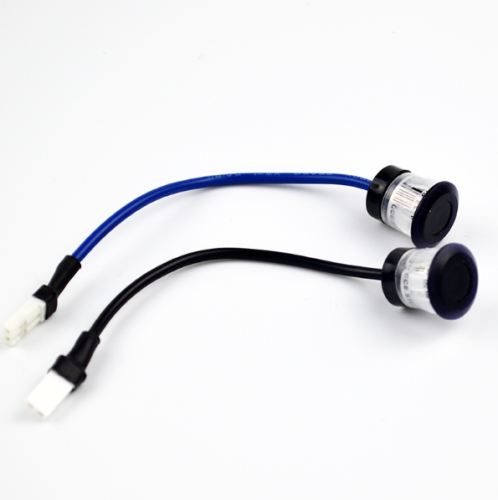

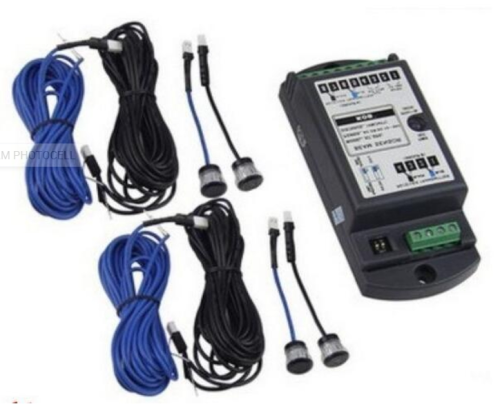

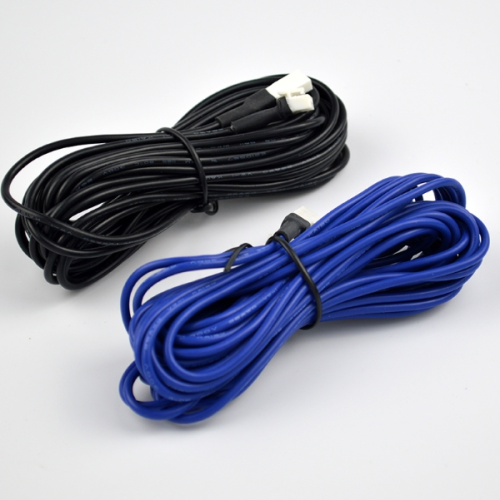

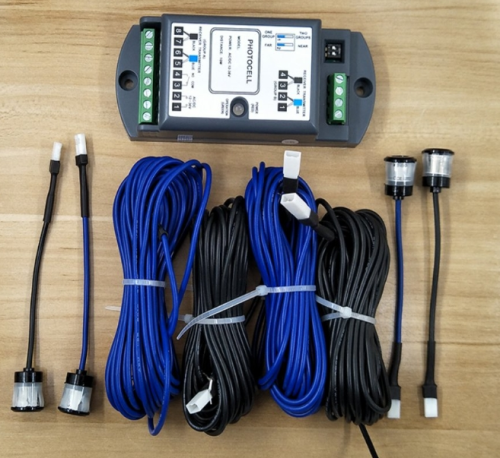

3) Picture of automatic door beam sensor:
