Automatic door microwave motion sensor

Model: VZ-S01
Place of Origin: Zhejiang,China (Mainland)
Product Material: Plastic
Special Function: Detector
Position: Commercial
Open Style: Automatic
Brand Name: VEZE
Type: Motion sensor
Port: Ningbo or Shanghai
Special Groups: automatic door accessory

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0~20.0 USDProduction Capacity:20000pcs/month
Trade Term:FOBPacking:Standard
Payment Terms:L/C, D/P, D/A, T/T, WUDelivery Date:1-12 working days
Min. Order:100 Piece/Pieces
Means of Transport:Ocean, Air, Land

Features of automatic door microwave motion sensor:
* Microwave motion sensor
* Microwave technology, microprocessor
* ABS plastics
* Black or silver color

Technical Specifications of automatic door microwave motion sensor:
Frequency
24.125GHz
Output  mode
Digital  switch  signal
Output  power
< 20dBm  EIRP
Power  supply
12V-24VAC/DC +30% / -10%,   50Hz-60Hz
Detection  range
4m(Length)× 8m(Width)× 2.2m(height)
Detection mode
Motion
Minimum speed
5cm/s (measured in the sensor axis)
Maximum contact current
1A
Maximum contact voltage
42VAC-60VDC
Temperature
-20°C~55°C
Power  consumption
< 2W(VA)
Protection  grade
IP54
Maximum  installation  height
4m
Length of cable
2.5m
Dimensions
120mm(W)*80mm(H)*50mm(D)
Weight
0.21Kg

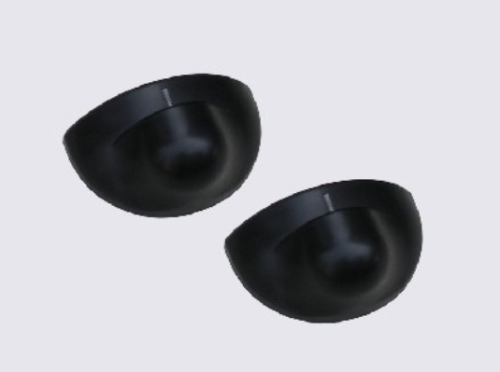

Automatic door microwave motion sensor

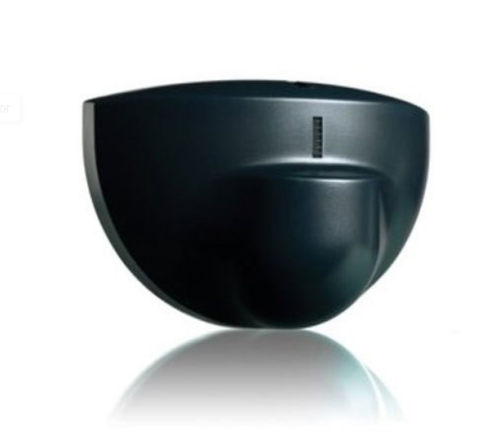

Automatic door microwave motion sensor

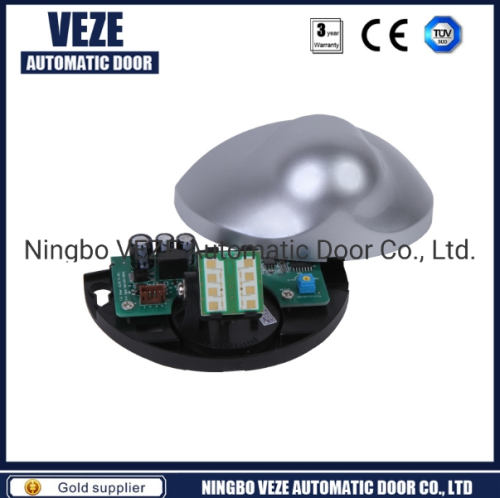

Inner parts of automatic door microwave motion sensor



Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.
6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
