Infrared motion and presence sensors for automatic doors

* Suitable for all size automatic doors, provide accurate detection of presence from any direction.
* Adjustable detection areas, the detection areas can be freely adjusted in the left, right and longitudinal directions.
* Detriment resistant
IR sensors and microcontrollers are generally immune to the effects of external factors such as rain, snow and insects, and keep high stability.


Technical specifications of infrared motion and presence sensors for automatic doors

Frequency	10.525GHz
Power supply	AC/DC 12-24V 50Hz-60Hz
Technology	Microwave and microprocessor
Transmitting power density	<5mW/cm2
Power consumption	<2W
Ambient temperature	-20°C~60°C
Relative humidity	0-95%
Detection range	4m(W)× 3m(D)
Min. Detection speed	5cm/s (measured in the sensor longitudinal axis)
Maximum installation height	4m
Detection mode	Motion
Detection angle	Horizontal 120°, Vertical 80°
Adjustment angle	0° to 90° vertical and -30° to + 30° horizontal
Length of cable	2.5m
Weight	220g
Protection grade	1P 54

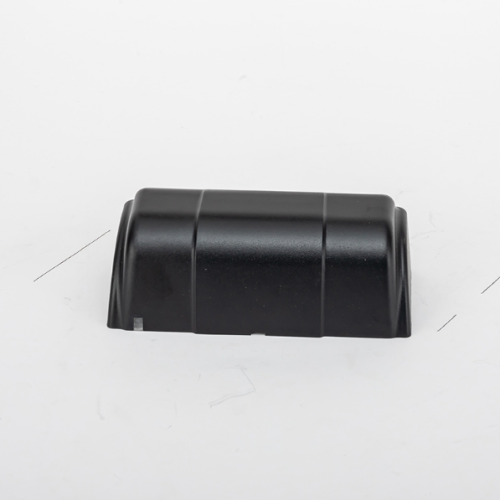

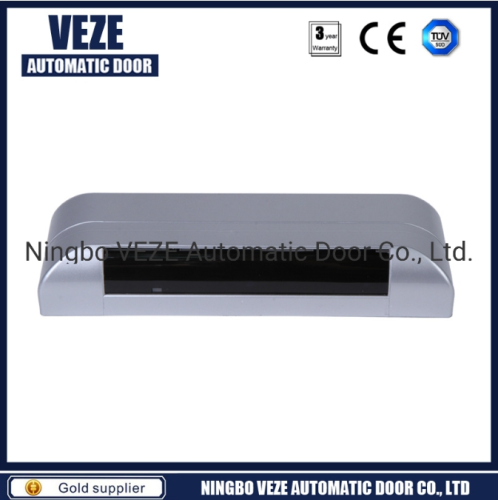

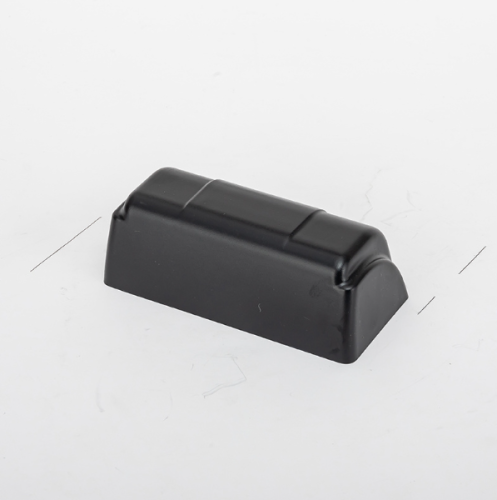

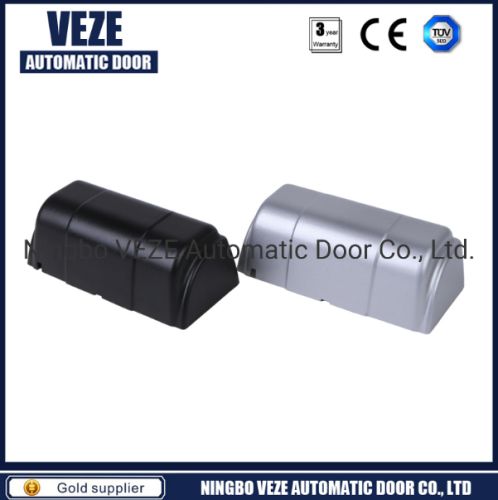

Picture of infrared motion and presence sensors for automatic doors



Detection range of infrared motion and presence sensors for automatic doors

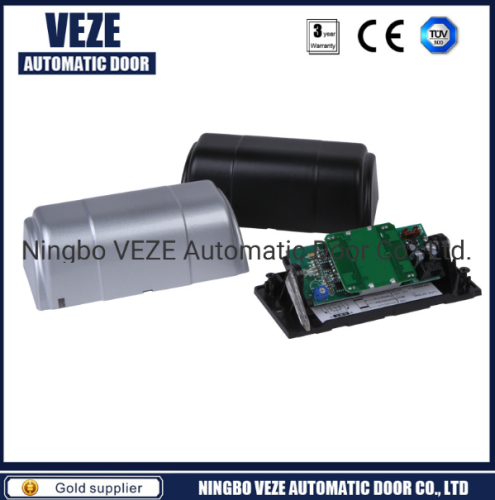

Inner parts of infrared motion and presence sensors for automatic doors



Connection diagram of infrared motion and presence sensors for automatic doors

Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
