Ningbo VEZE Automatic Door Co., Ltd.
Automatic sliding door operator, China Automatic sliding door operators Manufacturer
|
| Model: | VZ-125B |
| Place of Origin: | Zhejiang,China (Mainland) |
| Product Material: | Aluminum Alloy |
| Special Function: | Security |
| Position: | Commercial |
| Open Style: | Sliding |
| Brand Name: | VEZE |
| Type: | Automatic sliding door operators |
| Power Supplier: | AC220±10V 50/60Hz |
| Surface Finishing: | Finished |
| Special Function: | Safety anti-clip |
| Port: | Ningbo or Shanghai |
| Certificates: | ISO&CE |
| Lead time: | 1-12days |
| Special Groups: |
Automatic sliding doors |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 1.0~300.0 USD | Production Capacity: | 10000 units/month |
| Trade Term: | FOB | Packing: | carton box+bubble... |
| Payment Terms: | L/C, D/P, T/T, WU | Delivery Date: | 1-12 days after... |
| Min. Order: | 1 Set/Sets | ||
| Means of Transport: | Ocean, Air | ||
1) Features of automatic sliding door operators(VZ-125B series):
The VZ-125D series sliding door operators are suitable for all kinds of bi-parting automatic doors. They are widely used in office buildings, banks, restaurants,etc. They are characterized by the following characteristics:
**Cost effective, wide applications
**Microprocessor intelligent control
**High efficiency and low enengy consumption
**Low noise operation
**Microwave motion sensor, ensure safe passage
**Low carbon design, environment friendly
2) Technical specifications of automatic sliding door operators(VZ-125B series):
Gate sliding modes | Double-opening |
Gate leaf weight | ≤2*115 kg |
Gate leaf width | 500-1150mm |
Opening speed | 150-420mm/s(Adjustable) |
Closing speed | 100-400mm/s(Adjustable) |
Motor | 24V 55W brushless DC motor |
Opening time | 0-9second(Adjustable) |
Impact function | Rebounding up on impact |
Voltage | AC220V 50Hz-60Hz |
Operating Temperature | -20°C~60°C |
3) Sctional diagram of automatic sliding door operators

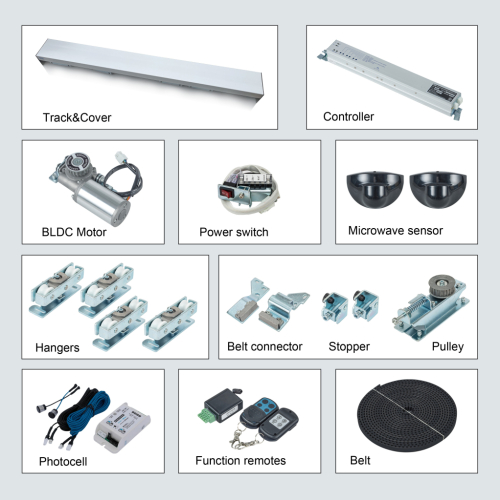

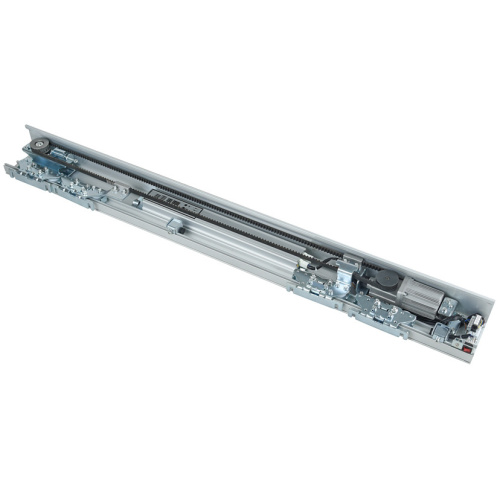

4) Picture of automatic sliding door operators

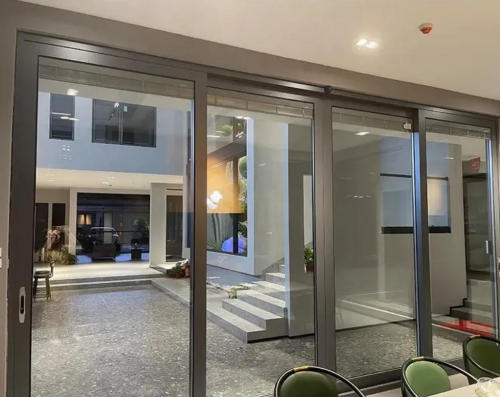

5) Application of automatic sliding door operators
VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.
6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
2014 NEW CE CERTIFICATE
Category: Automatic sliding door
