Ningbo VEZE Automatic Door Co., Ltd.
aluminium glass sliding door, China aluminium glass sliding doors Manufacturer
|
| Model: | VZ-155 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Product Material: | Aluminum Alloy |
| Special Function: | Security |
| Position: | Commercial |
| Open Style: | Sliding |
| Brand Name: | VEZE |
| Power Supplier: | 220V 50/60Hz |
| Motor: | 24V ,Brushless ,DC ,60W |
| Hold Open Time: | 0~9s(adjustable) |
| Special Function: | Security |
| Door Material: | Glass |
| Delivery Time: | Less than 10 working days |
| Port: | Ningbo/Shanghai |
| Surface Finishing: | Finished |
| Special Groups: |
Automatic sliding doors |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 1.0~300.0 USD | Production Capacity: | 6000 units/month |
| Trade Term: | FOB | Packing: | Wooden carton/case |
| Payment Terms: | L/C, D/P, T/T, WU | Delivery Date: | 1-10 working days... |
| Min. Order: | 1 Set/Sets | ||
| Means of Transport: | Ocean, Air | ||
1) Overall features and functions of aluminium glass sliding door:
(a) Muitiple choice automatic sliding doors suitable for both internal and external environments.
(b)Anti-pinch function makes the operator more safe and more reliable.
(c)Door will be able to operate about 2000 times(open and close) during a power failure.
(d)Five different functions with remote control function keypad: Always open, half open, exit only, lock, normal open.
(e) Good solution for accessories, for example, finger printer, remote control, push button, access keypad, security sensor, fire alarm, digital wireless video entry and so on.
(f)Microwave motion detectors and safety beam protects the passengers from bumping the door, safe and reliable.
(g)A wide range of functions and options ensures that automatic doors can operate smoothly according to individual needs in various environments.
(h)Advanced smart door technology with microprocessor intelligent control, makes it suitable for all purposes.
(i)The 24V DC brushless gearmotor enables intensive usage with a very low degree of noise.
(j)Can be connected with all kinds of access control devices, make the system more safe and reliable.
2) Technical Specification of aluminium glass sliding door:
Gate sliding modes | Single-opening | Double-opening |
Gate leaf weight | ≤1*155 kg | ≤2*145 kg |
Gate leaf width | 600-1200mm | 500-1100mm |
Opening speed | 150-600mm/s(Adjustable) | 150-550mm/s(Adjustable) |
Closing speed | 120-550mm/s(Adjustable) | 120-500mm/s(Adjustable) |
Motor | 24V 60/100W brushless DC motor | |
Hold open time | 0-9second(Adjustable) | |
Special Function | Security ,Hermetic | |
Voltage | AC220V 50Hz-60Hz | |
Operating Temperature | -20°C~60°C | |

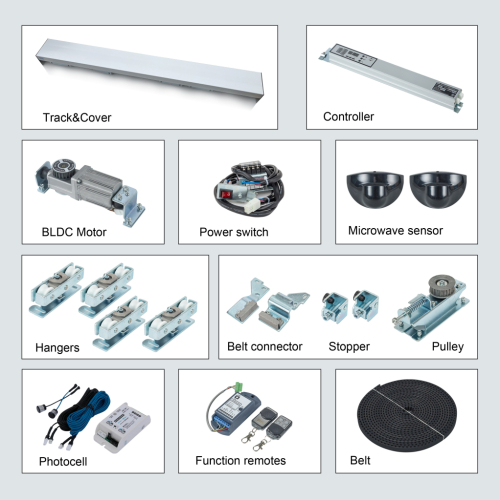

3) Main components of aluminium glass sliding door:
Motor | 1 |
Controller | 1 |
Microwave motion sensor | 2 |
Driven wheel / Idler pulley | 1 |
Connector | 1 |
Hangers | 4 |
Link span(left) | 1 |
Link span(right) | 1 |
Stopper | 2 (left/right) |
Belt tensioner | 1 |
Fastenings | 1 set |
Aluminium beam | 2×2.1m |
Glass clamp | 1 |
Installation Manual & Warranty Card | 1set |

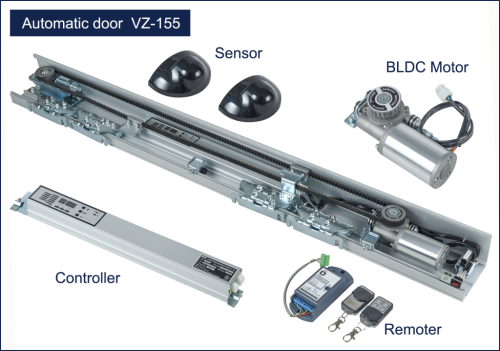

4) Schematic view of aluminium glass sliding door:
5) Dimensional drawing of aluminium glass sliding door:

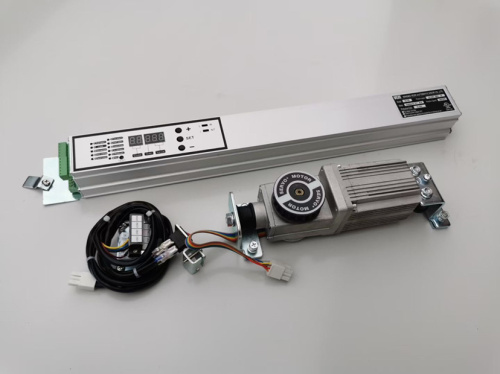

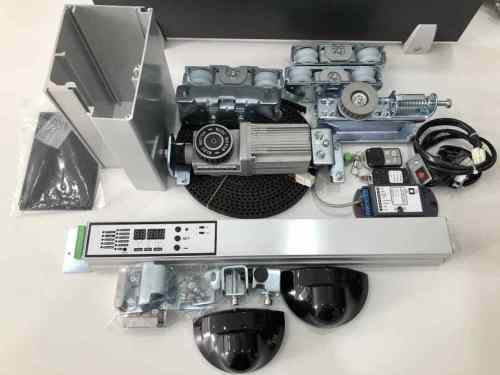

6) Picture of aluminium glass sliding door:
Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.
Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
Category: Automatic sliding door
