| Min. Order: | 1 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 6000 units/month |
| Packing: | Wooden carton/case | Delivery Date: | 3-12 days after... |
|---|---|---|---|
| Product Material: | Others | Special Function: | Safety, anti-clip |
| Position: | Commercial | Open Style: | Sliding |
| Brand Name: | VEZE | Type: | Automatic sliding doors |
| Power Supplier: | AC220±10V 50/60Hz | Surface Finishing: | Finished |
| Port: | Ningbo or Shanghai | Warranty: | 2 years |
| Certificates: | CE, ISO |
1) Features of automatic sliding door operators(VZ-195 series):
Automatic sliding door operators(VZ-195 series) are designed for heavy duty use. They are suitable as automatic opener and closer for single, double, telescopic and curved automatic sliding doors.
Single and double sliding doors suitable for both internal and external environments.
Advanced smart door technology
Simple to programme
Easily adjusted to meet different environment's needs
Intelligent microprocessor control system with self-learning function
In case of power failure, all of the programmed parameters remain in the computers memory, if the door is not locked the door can be operated manually.
2) Technical specifications of automatic sliding door operators(VZ-195 series):
Gate sliding modes | Single-opening | Double-opening |
Gate leaf weight | ≤1*195 kg | ≤2*190 kg |
Gate leaf width | 600-1200mm | 500-1150mm |
Opening speed | 200-650mm/s(Adjustable) | 200-600mm/s(Adjustable) |
Closing speed | 150-550mm/s(Adjustable) | 150-550mm/s(Adjustable) |
Motor | 24V 100W brushless DC motor | |
Opening time | 0-9s(Adjustable) | |
Automatic function | Automatically reverse upon obstruction | |
Voltage | AC220V 50Hz-60Hz | |
Ambient temperature | -20°C~60°C | |

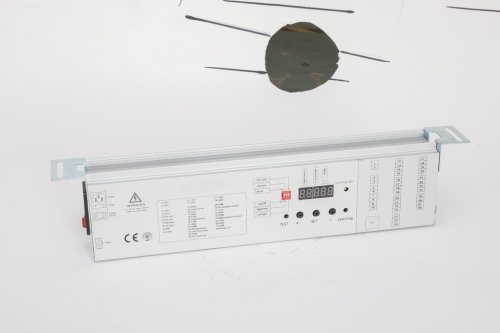

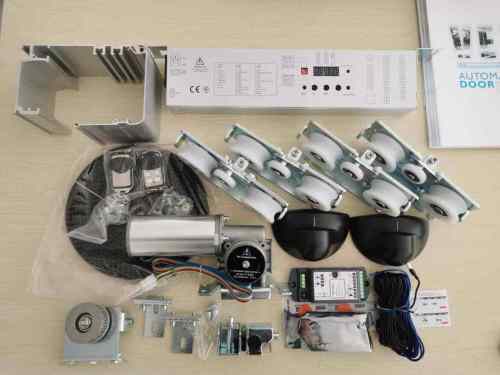

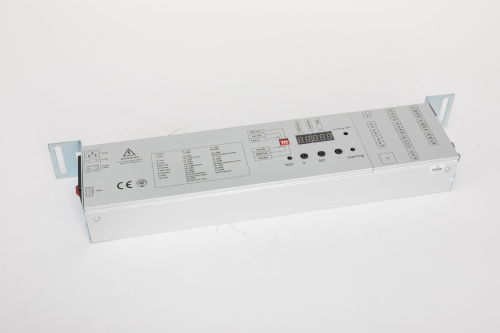

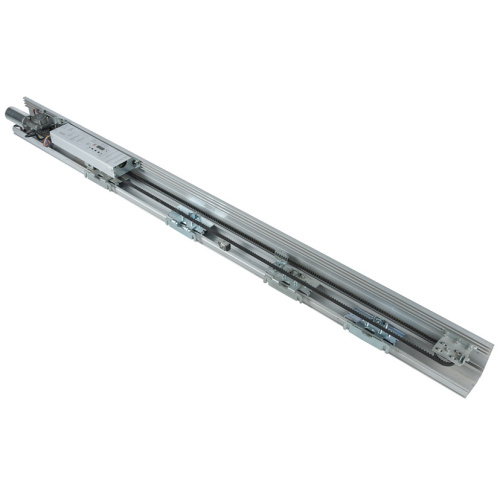

3) Picture of automatic sliding door operators(VZ-195 series)
4) Sectional diagram of automatic sliding door operators(VZ-195 series)
5) Application of of automatic sliding door operators(VZ-195 series)

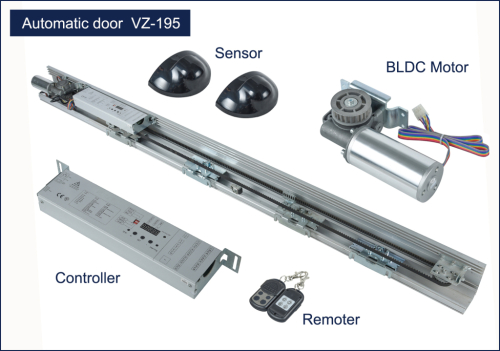

Structure graph of automatic sliding door operators(VZ-195 series)
Automatic door is a high-tech architectural construction engineering industrial product which integrates machinery, electronics and architectural decoration as a whole. It is mainly composed of door mechanism (drive,control and induction systems), door body (door frame, door leaf) and decoration. Only after the completion of installation and debugging of the building, it becomes a complete product and has its proper functions and features.
