| Min. Order: | 50 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, D/P, T/T, WU |
| Place of Origin: | Zhejiang, China (Mainland) |
| Means of Transport: | Ocean, Air |
| Production Capacity: | 10000 units/month |
| Packing: | Wooden carton | Delivery Date: | 1-10 days after... |
|---|---|---|---|
| Product Material: | Aluminum Alloy | Special Function: | Security |
| Position: | Commercial | Open Style: | Swing |
| Brand Name: | VEZE | Type: | Automatic swing door operator |
Features of automatic swing door operator:
1. High performance and low noise
2. Modular design , easy installation and replacement
3. With intelligence self-protection of overheat and overload, can rebound back upon an obstacle, safe and reliable
4.High efficiency and users convenient
Technical specifications of automatic swing door operator:
Door style | Single-leaf/Double-leaf |
Open angle | 90 degree |
Door width | 500~1200mm |
Door leaf weight | 120kg(Max) |
Opening speed | 200~400mm/s(adjustable) |
Closing speed | 200~400mm/s(adjustable) |
Hold open time | 1-10s(adjustable) |
Power supply | AC220V-AC240V 50Hz-60Hz |
Brushless motor | 55W, DC24V |
Operator size | 322*100*75mm(L*W*H) (adjustable) |
Operation noise | ≤ 55dB |
Ambient temperature | -20°C~60°C |

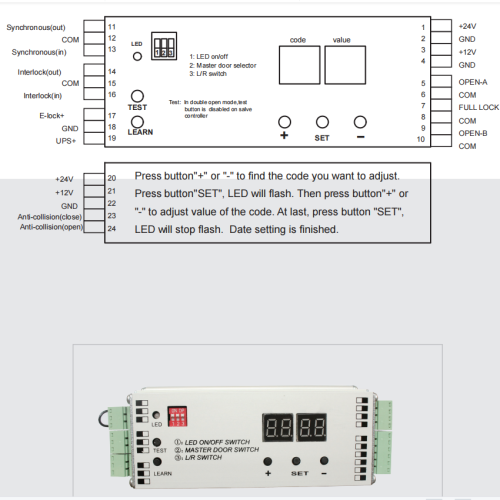

Picture of automatic swing door operator
Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.
Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.
6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
Category: Automatic swing door
