Auto Swing Door Openers

Features of auto swing door openers

1.Microcomputer technology, push and open function

2. Modular design, maintenance-free construction, easy installation and replacement

3. With intelligence self-protection of overheat and overload, automatically reverse upon obstruction during the process of opening and closing, safe and reliable

4. Electromagnetic lock control, ensure safety of the building

5. Intelligent control system with adjustable parameters

6.Advanced brushless motor with lower consumption,energy saving, high efficiency, great torque, low noise and long service life.
7. The door can be connected with remote control, password reader, card reader, microwave sensor, exit switch, fire alarm, etc.

8. Safety beam protects the guest from bumping the door, safe and reliable.

9. Optional backup battery can ensure the normal operation in case of power failure
10. Compatible with all safety devices
11. 24VDC 100W brushless motor, the motor transmission is simple and stable. Adopt worm and gear decelerator, super silence, no abrasion.
12. Adustable opening angle(90º-110º)

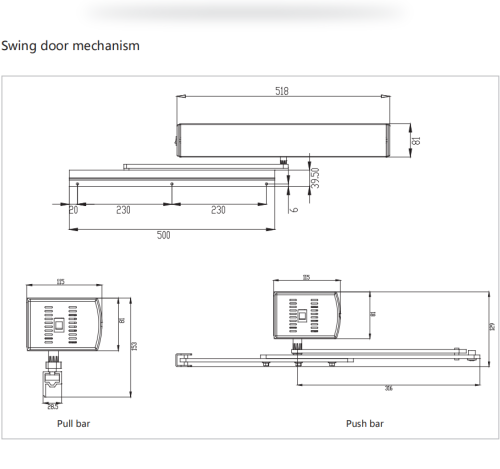

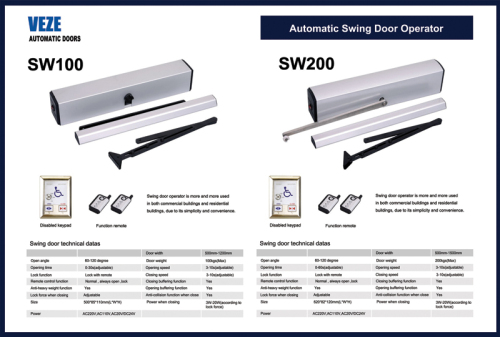

Technical specifications of auto swing door openers

Working procedures of auto swing door openers:

Activated by the signals from external control device→unlock→open→buffer action&stop→hold open→close→buffer action&stop→lock

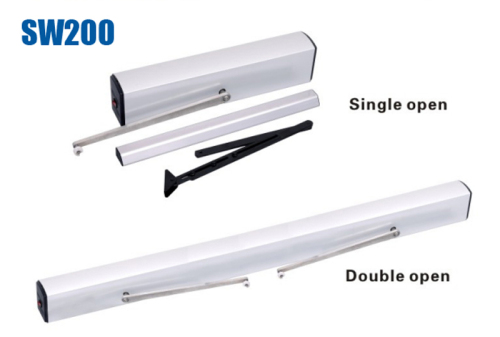

Picture of auto swing door openers

Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)

R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.

Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.

VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.

OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.

VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.

VEZE Competitive Advantages:
1. We are direct manufacturer & we have professional self design team, which is capable of satisfying the most demanding needs.
2. Our products have World Class Quality Testing. We have certificates of CE, UL, ROHS, TUV, CCC, ISO9001.
3. We provide 24-month warranty for all of our products.
4. We use high quality carton box,damp-proof & breakage-proof bubble wrap, as well as wooden case packing to keep the goods intact even in long-distance sea transportation.
5. Our special INSPECTION & QC department maintains a strict level of quality control. It ensures that all products are in compliance with specification. All goods and raw materials bought into the company go through strict inspection to ensure they are of good quality and correct.

6. We have large production capability and sufficient safety stock to ensure quick lead-time.
7. We are constantly innovating to launch new products every year.
