Ningbo VEZE Automatic Door Co., Ltd.
Automatic sliding door operator system, China Automatic sliding door operator system Manufacturer
|
| Model: | VZ-125 |
| Place of Origin: | Zhejiang,China (Mainland) |
| Product Material: | Aluminum Alloy |
| Special Function: | Security |
| Position: | Commercial |
| Open Style: | Sliding |
| Brand Name: | VEZE |
| Type: | Automatic sliding doors |
| Surface Finishing: | Finished |
| Hold Open Time: | 0~9s(adjust) |
| Special Function: | Secturity |
| Door Material: | Glass |
| Port: | Ningbo or Shanghai |
| Delivery Time: | 1-10 days after payment |
| Certificate: | CE |
| Special Groups: |
Automatic sliding doors |
| Payment & Shipping Terms | Supply Capacity | ||
|---|---|---|---|
| Unit Price: | 260.0 USD | Production Capacity: | 6000 units/month |
| Payment Terms: | L/C, D/P, D/A, T/T, WU | Packing: | Wooden carton/case |
| Min. Order: | 10 Set/Sets | Delivery Date: | 1-10 days after... |
| Means of Transport: | Ocean, Air | ||
1) Overall features and functions of automatic sliding door operator VZ-125:
(a) Muitiple choice automatic sliding doors suitable for both internal and external environments.
(b) Four operating options: fully automatic, half open, always open and always locked.
(c) The technical parameters can be adjusted to accommodate different conditions.
(d) Built-in microprocessor chip ensures the accuracy and precision of the operation.
(e) Automatically reverse back upon an obstruction.
(f) Infrared motion detectors and safety beam protects the passengers from bumping the door, safe and reliable.
(g) A wide range of functions and options ensures that automatic doors can operate smoothly according to individual needs in various environments.
(h) Advanced smart door technology with microprocessor intelligent control, makes it suitable for all purposes.
(i) Operation selection in manual operated activators, motion detectors, safety sensors, remote control, access control system, and programmable switch, etc.
(j) The 24V DC brushless gearmotor enables intensive usage with a very low degree of noise.
(k) Can be connected with all kinds of access control devices, make the system more safe and reliable.
(l) Can be interfaced with security systems and different types of locking systems.

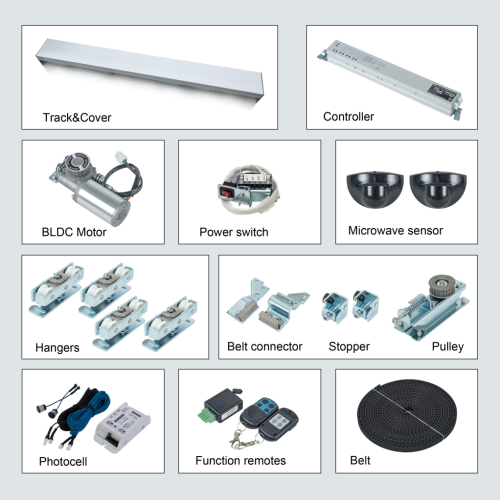

2) Standard configuration of automatic sliding door operator VZ-125:
Motor | 1 |
Controller | 1 |
Microwave motion sensor | 2 |
Driven wheel / Idler pulley | 1 |
Connector | 1 |
Hangers | 4 |
Link span(left) | 1 |
Link span(right) | 1 |
Stopper | 2 (left/right) |
Belt tensioner | 1 |
Fastenings | 1 set |
Aluminium rail | 2×2.1m |
Installation Manual & Warranty Card | 1set |

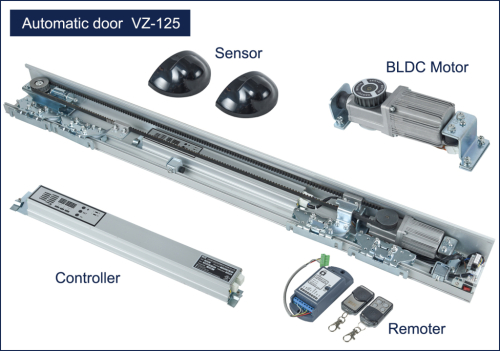

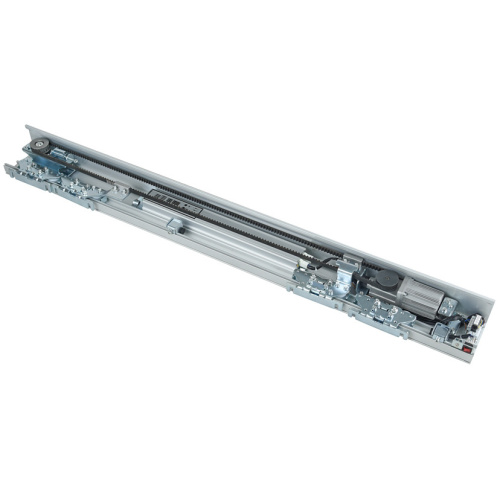

3) Picture of automatic sliding door operator VZ-125
Safety Certification
Our products have certificates of CE, UL, ROHS, TUV, CCC to meet strict requirements of different countries. We also have the certificate of ISO9001(Quality Management System)
R&D Team and Manufacturing
VEZE has established special R&D department, Tooling department, Testing department, Assembling department, and Packing department. Meantime, in order to guarantee the quality of product, we purchase the imported high-quality machine from USA & Germany. The PCB of the controller are printed precisely by the SMT machine, the motor are coiled by the automatic coil winding machine. From the testing procedure, all the types of controllers and electronic parts will stay in power for more than 36 hours to check whether all electronic devices work well, each motor needs to pass the severe testing before selling, hardware will be checked under the strict QC system. So that our enterprise could supply products with good quality and competitive price.
Sales & Services
VEZE Automatic Door Co., Ltd takes Quality, Efficiency and Service as the motto. So we provide 24 months warranty. During the warranty period, we can replace the parts of problem with new ones for free.
VEZE have the most dedicated international service team. If you have any question or meet any problem, please feel free to contact us at any time, we'll reply you and help to solve the problem at the soonest.
OEM&ODM Service
We have professional design team, which can rebrand the customer's logo and company name as per customer's wishes.
VEZE will never stop the pursuit of innovation with style. VEZE Automatic Door Co., Ltd would develop more innovative and market-oriented products in the future.
Category: Automatic sliding door
